Private Underground Shelters by KMK Group are compact, waterproof underground spaces designed to support everyday needs while providing protection from natural and wartime threats and their consequences, including tornadoes, hurricanes, structural collapse, debris, blast effects, and shock waves.
The shelters feature an airtight structure made from the unique PANELTIM polypropylene material (Belgium), equipped with an integrated supply and exhaust ventilation system, with the option to install forced ventilation. They can be customized for specific requirements and connected together to form larger shelter complexes.
The shelter structure is made of PANELTIM polypropylene panels — a premium-grade construction material designed for creating durable structures without additional reinforcement. The structural material consists of a polypropylene copolymer (PPCO) and high-density polyethylene (HDPE). The panel thickness is 50 mm.
Shelter cover options are available in both polypropylene and metal versions.
private
from €6,600
# features
A module with a vertical entrance, two wide shelves, an airtight structure, and a built-in ventilation system.
сommercial
from €18,150
# features
Feature: A module designed to provide effective protection for employees and customers during emergency situations.
The Legotech approach allows existing modules to be expanded and adapted over time. Standard shelters can be easily reconfigured for specialized or everyday needs and connected together to form larger shelter complexes.
The structure of the private underground shelter is made from ultra-durable PANELTIM polypropylene sandwich panels. It is resistant to mechanical stress and moisture and comes with a service life of over 50 years.
The shelter is made from a durable material, features an airtight closure, withstands temperature fluctuations and moisture exposure, and provides reliable protection against debris resulting from structural collapse.
The polypropylene structure is resistant to rot, corrosion, high humidity, and extremely dry conditions. Its service life exceeds 50 years.
The shelter is resistant to rodents and insects. Shelves installed around the perimeter allow supplies to be stored conveniently without reducing usable space.
The module features a strong, airtight structure. It requires no additional waterproofing or insulation and can be installed regardless of groundwater levels.
Stored supplies remain in a stable temperature and humidity environment throughout the year, helping to ensure a longer shelf life for food and other products.
Suitable for installation in areas with high groundwater levels, in any type of soil, in marshy terrain, and even near bodies of water—whether in open spaces or beneath existing structures.
Structures are manufactured according to the dimensions and conditions of the designated installation site. Multiple modules can be combined to create a larger shelter complex.
The shelters are manufactured from safe, environmentally friendly plastic, comply with all sanitary and hygiene standards, and can be easily cleaned using a minimal amount of water.
The manufacturing and installation of the shelters are carried out in accordance with underground construction standards, so no additional permits are required.

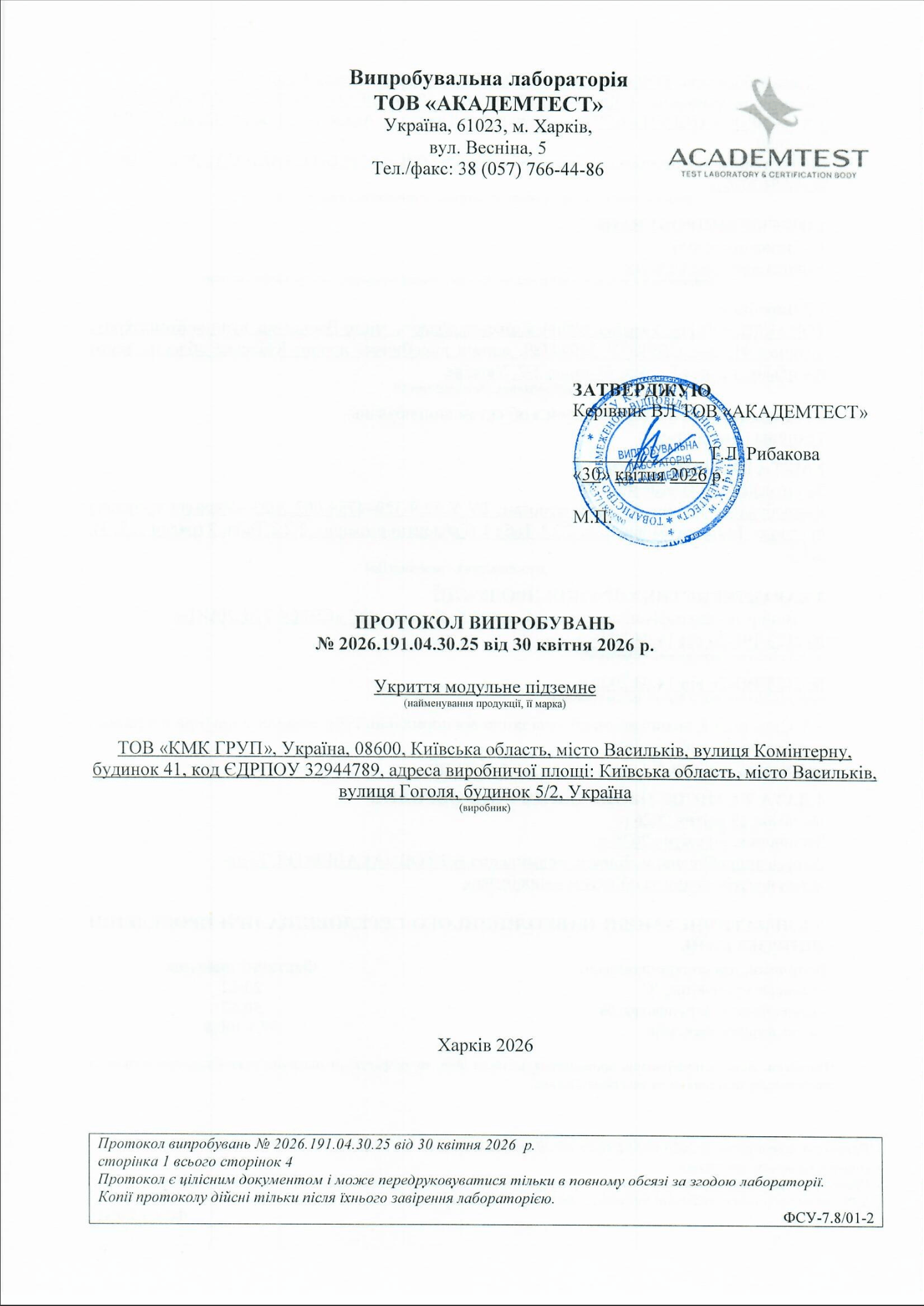

We tested the shelter under realistic conditions without concrete reinforcement or full underground installation. During the first test, the company’s director remained inside the shelter to personally experience and demonstrate the reliability of the structure.
Yes. Real-world testing was conducted at a testing ground, with the company director inside the shelter during the trials.
The following were used:
1. A charge equivalent to 2 kg of TNT at a distance of 1.7 m.
2. An RPO-A “Shmel” thermobaric warhead (equivalent to a 152 mm artillery shell) at a distance of 1.1 m.
3. A charge equivalent to 4 kg of TNT at a distance of 5 m.
The shelter, installed underground, remained intact and undamaged.
Concrete reinforcement is not mandatory (it is only required in areas with a high groundwater level).
However, we recommend additional concrete reinforcement to further enhance the level of protection.
For example, to improve resistance against a direct strike from an unmanned aerial vehicle with a warhead (such as a Shahed drone), the following additional concrete reinforcement is recommended:
Above the shelter: 45 cm of concrete (15 cm + 30 cm applied in two stages)
Walls: 40 cm concrete thickness
These measures provide an additional layer of protection in high-risk environments.
The standard shelter configuration includes a single entrance/exit. However, the shelter can be customized and upgraded to meet individual customer requirements, including:
* An additional emergency exit
* Extra sleeping accommodations
* Additional storage shelves for food and supplies
* Extra electrical outlets
* A drinking water storage tank
* And other custom features as required
This modular approach allows the shelter to be tailored to your specific needs.

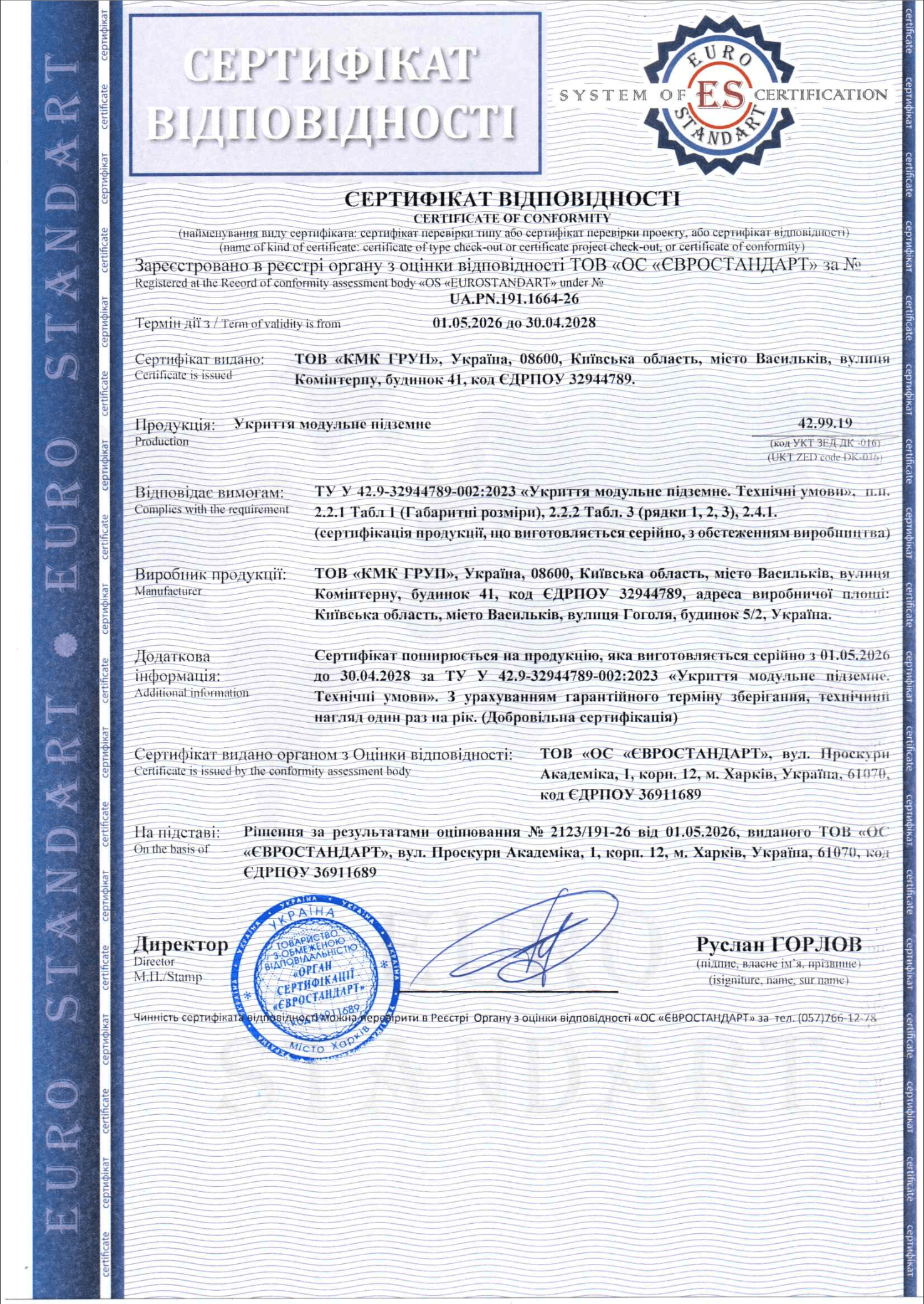

No, our shelters are certified and meet the requirements for the simplest private shelters, and therefore can be installed on your site without obtaining additional permits.
from 420 kg depending on the model
No. We are the manufacturers of the shelters. Delivery and installation are carried out by contractors.
Shelter is a product of Paneltim Ukraine, a member of the KMK Group.
Manufacturers of polypropylene products Paneltim since 2006.
Manufacturers of underground spaces for domestic purposes since 2021.
